ETFE solar panel

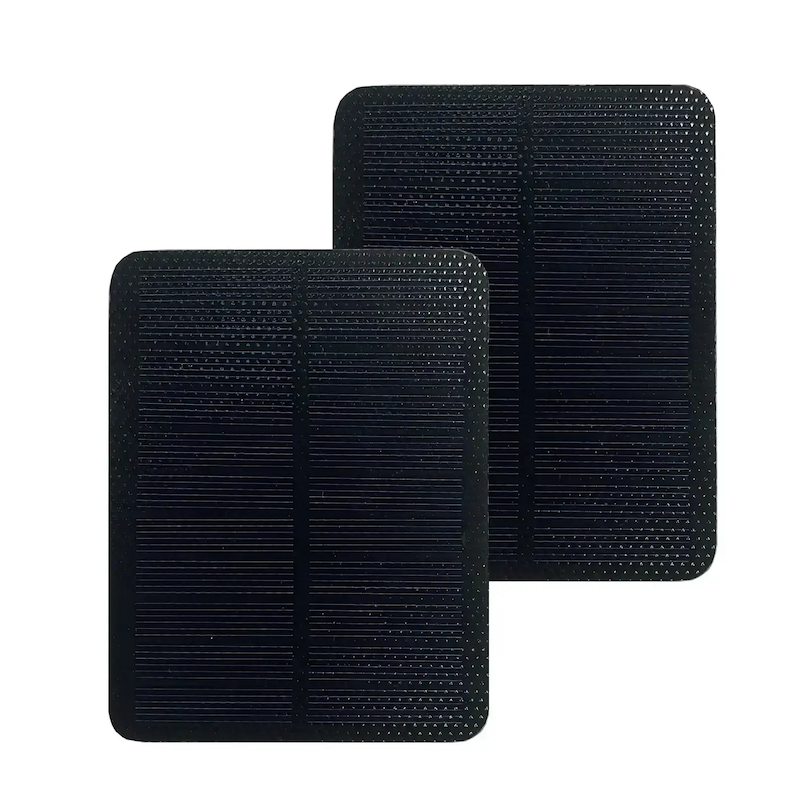

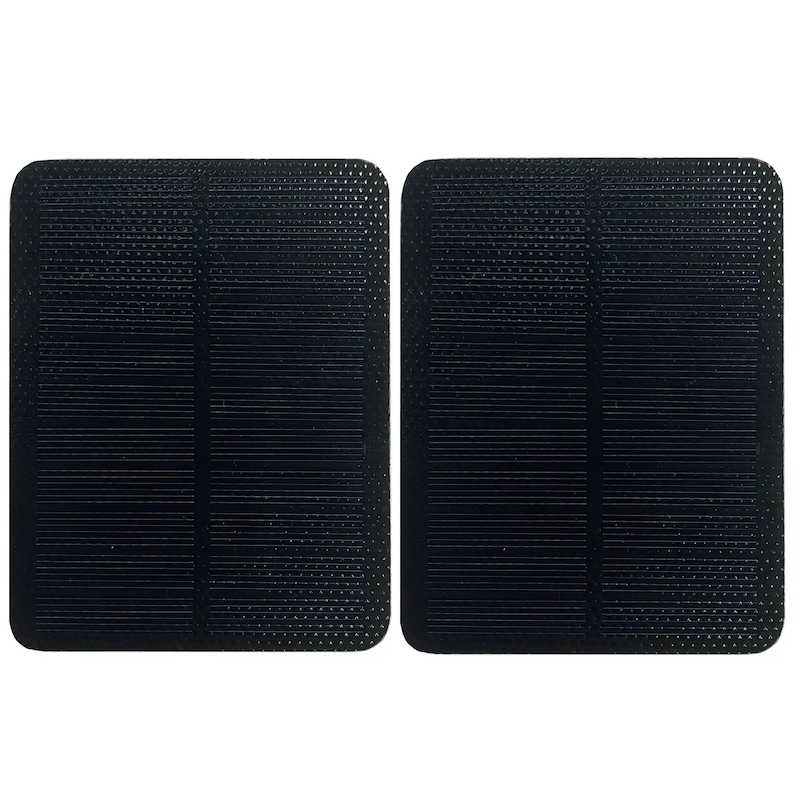

ETFE Mini Solar Panel 120x90mm 5V round corner solar panel

ETFE Mini Solar Panel 120x90mm 5V round corner solar panel

Maximum Power(Pm): 1.5W
Operating Voltage(Vmp): 5V
Operating Current(Imp): 273mA
Dimension: 120x90x2.5mm
Product description: 120x90mm ETFE solar panel 5V 1.5W small ETFE solar panel
INQUIRY

120x90mm ETFE solar panel 5V 1.5W small ETFE solar panel

Maximum Power(Pm): 1.5W
Operating Voltage(Vmp): 5.5V
Operating Current(Imp): 273mA
Dimension: 120x92x2.5mm
Encapsulation methods: ETFE Lamination
Material: monocrystalline silicon cell

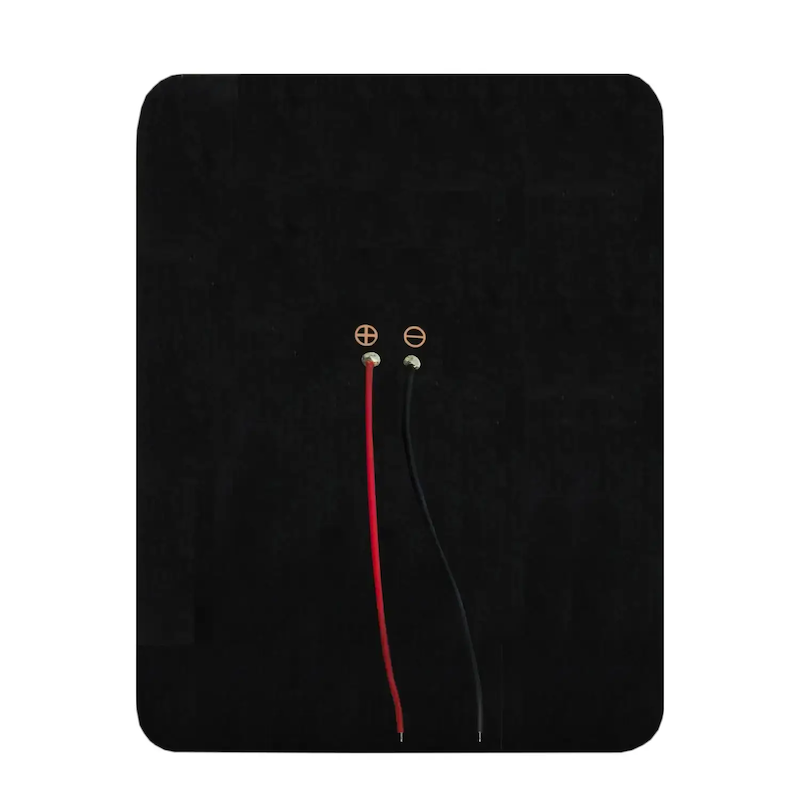

No frame, with solder 24AWG wire, 100mm long.
Application: Light Industry

Solar Panel Application：

ETFE solar panel for bike, electric cycle, backpack
ETFE solar panel for charger, toy, flashlight, educational kits
ETFE solar panel for crafts, toys, fountain, traffic signs
ETFE solar panel for school project, DIY projects
ETFE solar panel for agricultural canopy, irrigation system
ETFE solar panel for road sign lights,navigation lights,garden lights
ETFE solar panel for outdoor monitoring systems, security systems
Other applications

Product Description

ETFE solar panel is a lightweight, waterproof solar panel.
High efficiency monocrystalline solar cells.
The thickness of ETFE solar panel: 2mm-2.8mm.
UV resistant and scratch resistant ETFE coating.
The panel features high-efficiency Mono solar cells mounted to a PCB using an SMT Process.
Standard test conditions(STC): AM1.5, Irradiance:1000W/㎡, Module temperature:25ºC.

Product Specification

Maximum Power(Pm): 1.5W
Operating Voltage(Vmp): 5V
Operating Current(Imp): 300mA
Dimension: 120x90x2.5mm
Encapsulation Methods: ETFE solar panel
Solar Cell Efficiency: 22.8%
Operation life: 5 years - 10 years
Application: Light Industry
Warranty: power keep more than 90% in 10 years

Customized solar panel services
Tailored shapes of solar panels: square solar panel, rounded rectangle solar panel, round solar panel, long strip solar panel, triangle, tetragonum, hexagon, rectangle, pentagonal shape, parallelogram, rhombus, trapezoid, fan-shaped, arch, circle and polygon.
Customized size of solar panels: Width: 20mm - 1200mm, Lengths: 20mm - 1200mm, Other size on demand.
Customized power of solar panels: 0.1W, 0.2W, 0.5W, 1W, 1.5W, 2W, 3W, 5W, 6W, 7W, 8W, 9W, 10W, 12W, 15W, 20W, 25W, 30W,40W, 50W, 300W.
Customized voltage of solar panels: 1.5V, 2V, 3V, 4V, 5V, 5.5V, 6V, 7V, 8V, 9V, 10V 12V, 13V, 18V, 24V, 36V, 48V, 54V.
Solar panels color options: white / black
Miolentek solar professional manufacture all kinds of solar product, 10+ years of industry experience, we can produce high efficiency solar cell panel. Our produced customized solar panel according to customer's demand.
