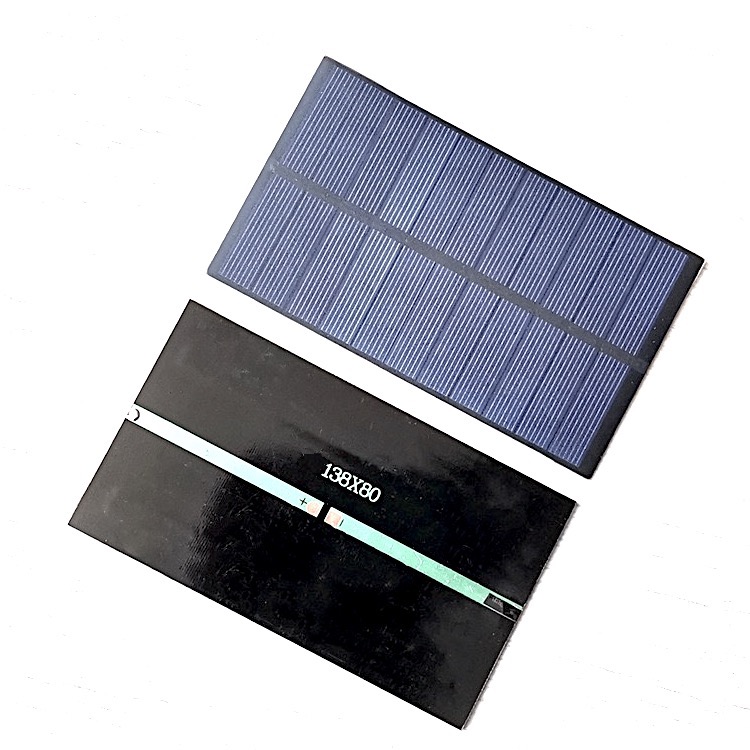

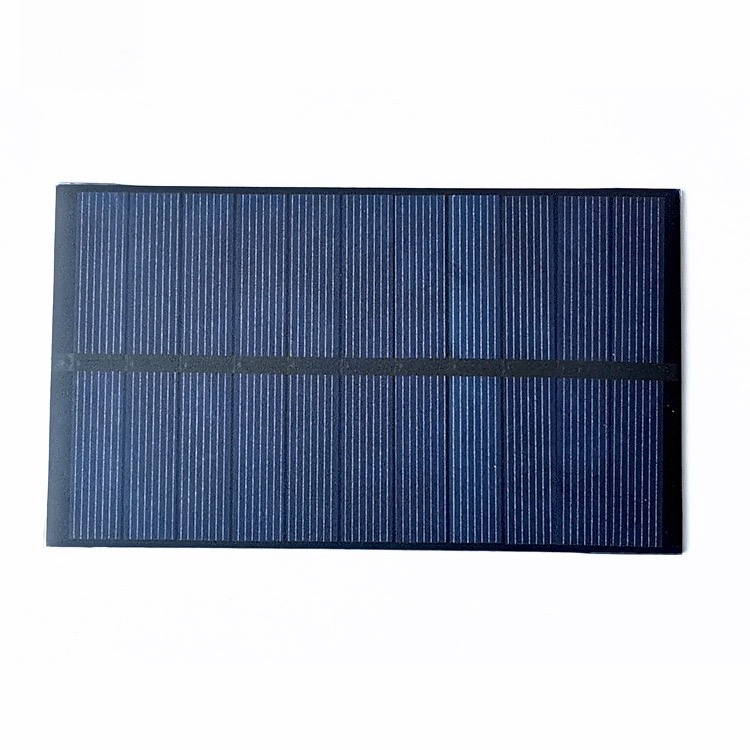

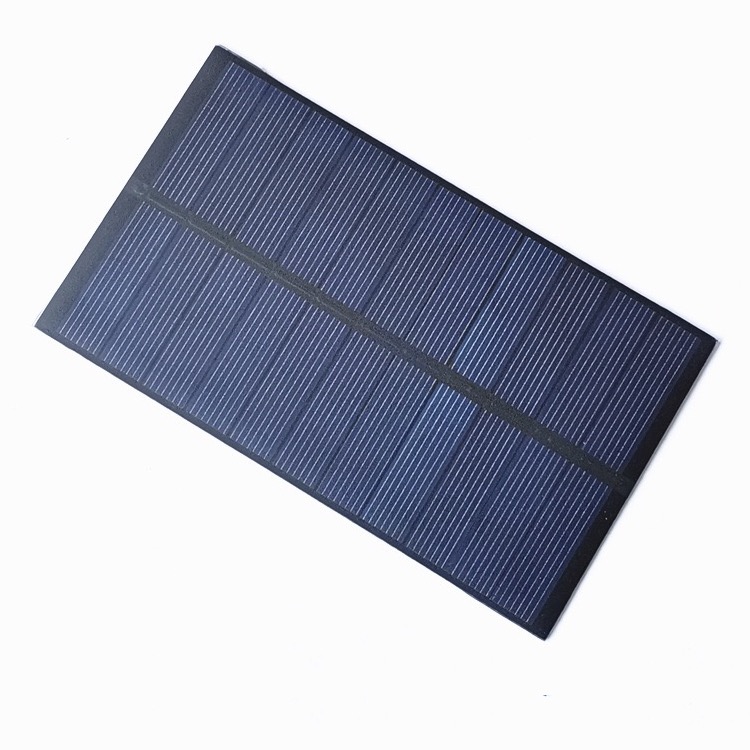

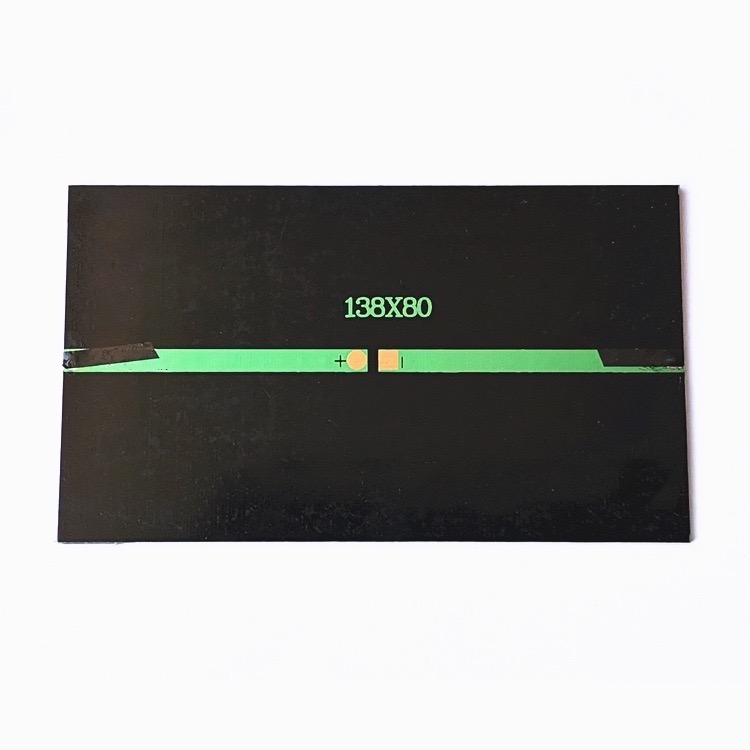

PET 5.5v 138 x80MM size Factory customized cheap 0.6W PET poly solar panel mini solar panel for solar power light

1.Standard testing condition :Sun radialization: 1000Wm2 or lighting illumination :38000LUX,temperature 25C, Humidity:1090,  Atmosphere:AM1.5.

2.standard testing conditon deviation cause non-linear output

3.on poor light condition the electricity characteristics output of each panel is different beacause the crystalline-silicon have discreteness.

4.the output voltage lie on the working voltage and power of the load or on the nominal voltage of the battery.

Materrials

Polysilicon, PET, pcb

Solar cell size:

156mm

PCB

FR-4

PCB thickness(mm)

1.0mm

PCB color

Black

PCB size(mm)

138x80X2mm

Barline:

black tape or none

Encapsulation:

PCB+EVA+PET

Peak power:

1.4W

Max Voltage:

5.5V

Open Voltage:

6.0V

Max Current:

255mA

Short current:

262mA

Weight:

38G
