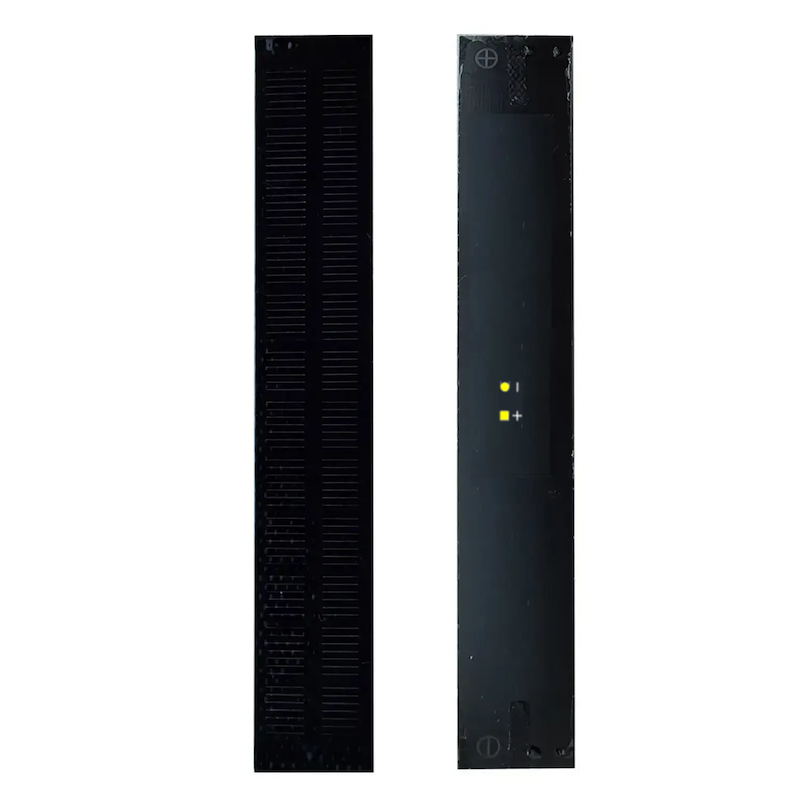

148x22mm Small Solar Panel 6V 0.5W PET solar panel

Small solar panel 6V 0.5w 148X22MM Miolentek solar

Product Description

• PET lamination solar panels is a lightweight, waterproof solar panel.
• High efficiency monocrystalline solar cells.
• The thickness of PET solar panel: 2mm-2.8mm.
• The panel features high-efficiency Mono solar cells mounted to a PCB using an SMT Process.
• With UV- and scratch-resistant PET coating with UV-resistant EVA.
• For maximum power output, orient the panel towards the sun.
• Standard test conditions(STC): AM1.5, Irradiance:1000W/㎡, Module temperature:25ºC.

Product Specification

• Maximum Power(Pm): 0.5W
• Operating Voltage(Vmp): 6V
• Operating Current(Imp): 835mA
• Dimension: 148x22x2.6mm

• Encapsulation Methods: PET lamination.
• Solar Cell Efficiency: 22.8%
• Operation life: 5 years - 8 years
• Application: Light Industry
• Warranty: power keep more than 90% in 10 years

Customized solar panel services
Tailored shapes of solar panels: square solar panel, rounded rectangle solar panel, round solar panel, long strip solar panel, triangle, tetragonum, hexagon, rectangle, pentagonal shape, parallelogram, rhombus, trapezoid, fan-shaped, arch, circle and polygon.

Customized size of solar panels: Width: 20mm - 1200mm, Lengths: 20mm - 1200mm, Other size on demand.

Customized power of solar panels: 0.1W, 0.2W, 0.5W, 1W, 1.5W, 2W, 3W, 5W, 6W, 7W, 8W, 9W, 10W, 12W, 15W, 20W, 25W, 30W,40W, 50W, 300W.

Customized voltage of solar panels: 1.5V, 2V, 3V, 4V, 5V, 5.5V, 6V, 7V, 8V, 9V, 10V 12V, 13V, 18V, 24V, 36V, 48V, 54V etc.
Solar panels color options: white / black

Miolentek solar professional manufacture all kinds of solar products, 10+ years of industry experiences, we can produce high efficiency solar cell panel. Our produced customized solar panel according to customer's demand.
